ACADEMIC PROJECT · LABVIEW
Automated Instrument Control & Data Acquisition
Developing a LabVIEW VI to control a programmable power supply, acquire DMM measurements, calculate resistance, visualize I–V data, and export results to Excel.
01 / OVERVIEW
Integrated Instrument Control
I independently developed a LabVIEW virtual instrument and supporting subVIs to control a programmable power supply and acquire voltage and current readings from a digital multimeter. The VI calculates resistance using Ohm’s law, plots current against voltage, and exports measurement data to Excel.
02 / SYSTEM DESIGN
Automated Measurement Workflow
Configure
Voltage sweep and limits
Voltage sweep and limits
Control
Programmable supply
Programmable supply
Measure
DMM voltage / current
DMM voltage / current
Analyze
Resistance, I–V, Excel
Resistance, I–V, Excel
03 / IMPLEMENTATION

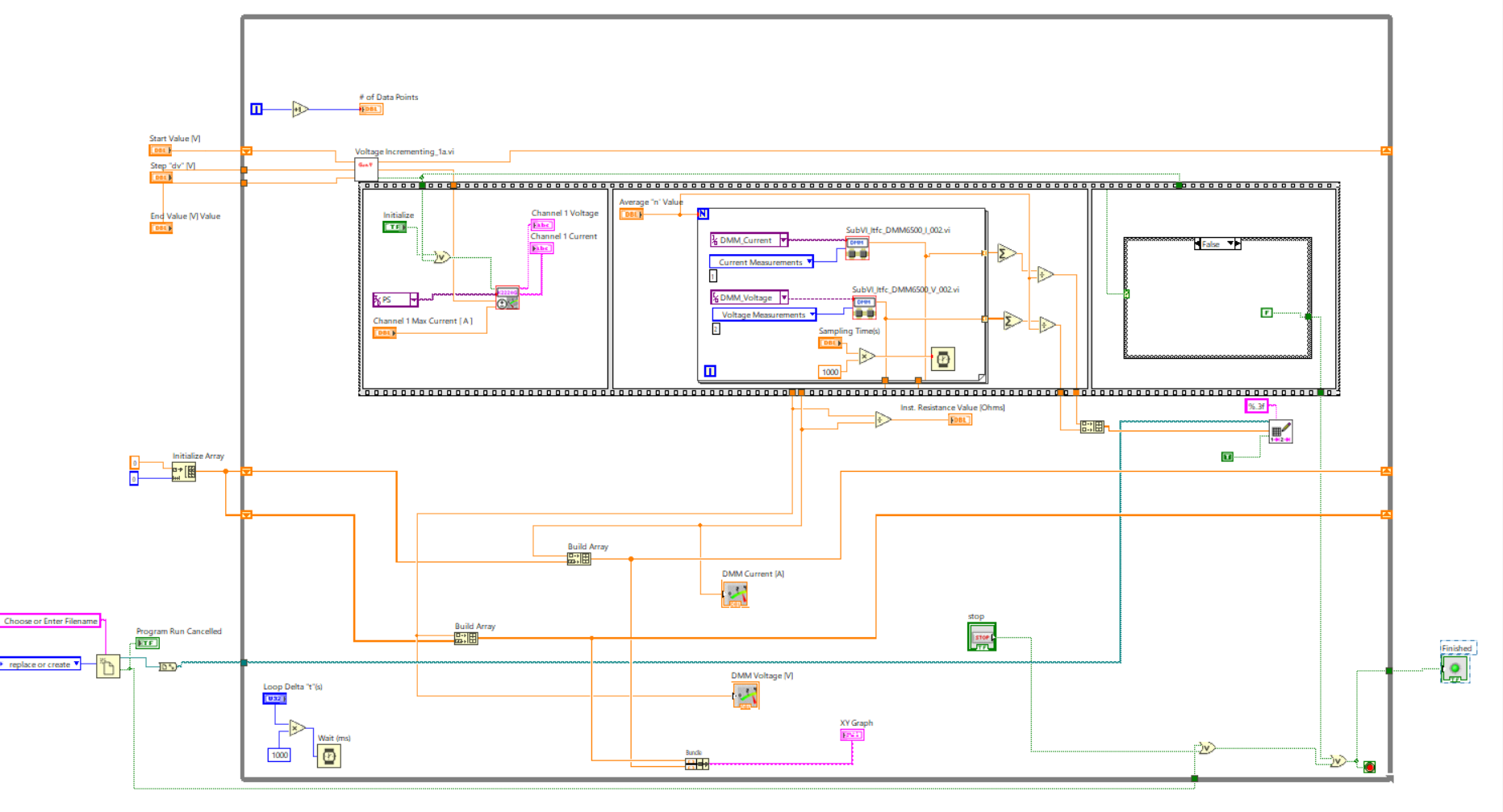

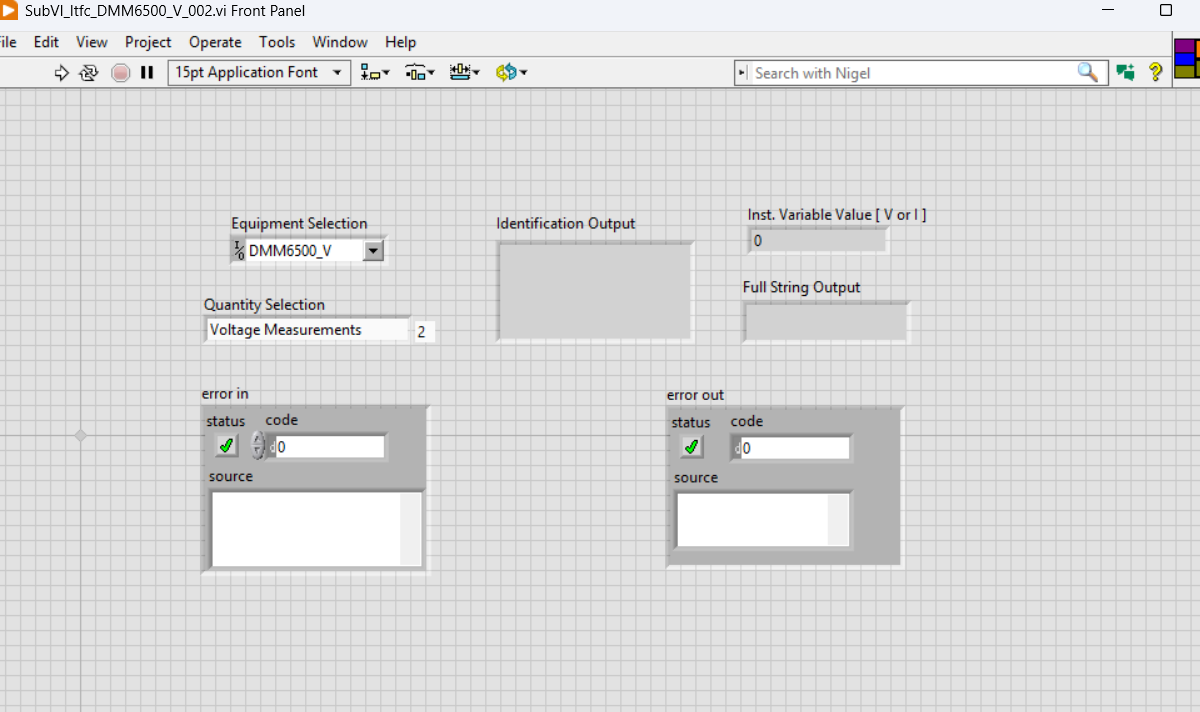

Front Panel, SubVIs & Block Diagram
04 / TESTING
Validation with a 330 Ω Resistor

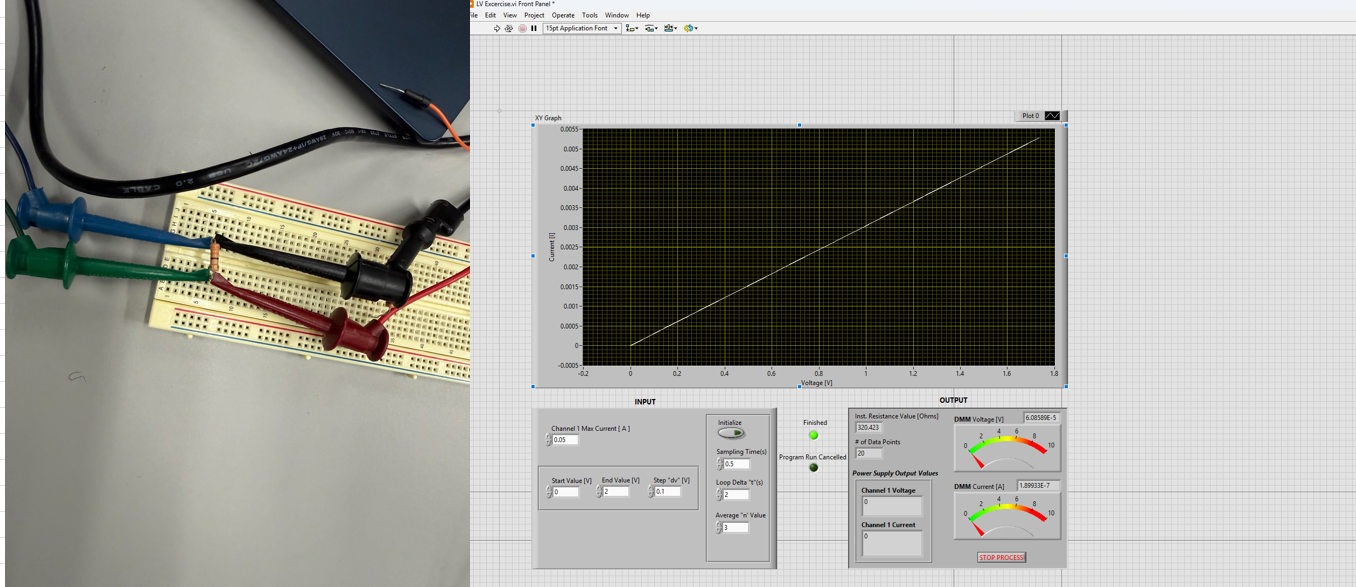

I tested the VI with a nominal 330 Ω resistor. The documented screenshot shows a calculated resistance of approximately 320.423 Ω, close to the nominal value, along with an approximately linear I–V relationship. This was an initial functional check, not a calibrated accuracy study.
05 / CHALLENGES
Troubleshooting & Iteration
I worked through VISA instrument communication, corrected subVI connector-pane configuration, and revised the dataflow after an initial Excel export setup created the file before the readings were available.
SKILLS IN PRACTICE
Skills Applied
Here is how the tools and techniques from my Technical Skills section were applied to this project.
Circuit Design
Built and tested the resistor measurement circuit to check the acquisition and resistance-calculation workflow.
